Broadcom BCM957414M4143C - Nettverksadapter - PCIe 3.0 x8 Mezzanine - 50 Gigabit QSFP28 x 1

Broadcom BCM957414M4143C - Nettverksadapter - PCIe 3.0 x8 Mezzanine - 50 Gigabit QSFP28 x 1 BCM957414M4143C
Logg inn for pris
Informasjon
15 På lager
BrocadeProdusentBrocadeUNSPSC
43201404
Artnr
BCM957414M4143C

Protokoll50 Gigabit Ethernet
GrensesnittPCI Express 3.0 x8 Mezzanine
  • Single-port pluggable media interface, which may be equipped with 50 Gb/s QSFP28 optical transceiver or with copper direct-attach cable
  • Fully compliant with the SFF-8665 standard
  • X8 PCI Express 3.0 compliant
  • SR-IOV with up to 128 virtual functions (VFs)
  • Function-Level Reset (FLR) support
  • TruFlow flow processing engine
  • Virtual Network Termination - VXLAN, NVGRE, Geneve, GRE encap/decap
  • VSwitch acceleration
  • Tunnel-aware stateless offloads
  • DCB support: PFC, ETS, QCN, DCBx
  • RDMA over Converged Ethernet (RoCE)
  • Network Controller Sideband Interface (NC-SI)
  • SMBus 2.0
  • MCTP over SMBus
  • PCIe-based UART and KCS
  • Jumbo frames up to 9 KB
  • Advanced Congestion Avoidance
  • Multiqueue, NetQueue, and VMQ
  • IPv4 and IPv6 offloads
  • TCP, UDP, and IP checksum offloads
  • Large Send Offload (LSO)
  • Large Receive Offload (LRO)
  • TCP Segmentation Offload (TSO)
  • Receive-side Scaling (RSS)
  • Transmit-side Scaling (TSS)
  • VLAN insertion/removal
  • Interrupt coalescing
  • Network boot - PXE, UEFI
  • ISCSI boot
  • Wake-on-LAN (WOL)
  • MSI and MSI.X

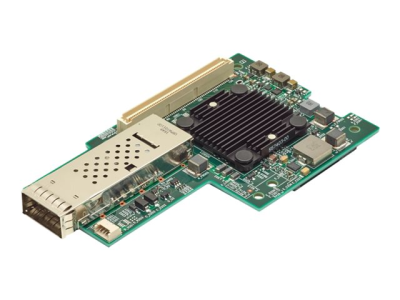

The Broadcom BCM957414M4143C is a single-port 50 Gb/s, PCI Express 3.0 x8 Mezzanine Card, designed to the Open Compute Project (OCP) Mezzanine Card 2.0 Design Specification with a QSFP28 network connector as a Type 1 adapter with the board outline adhering to the original v0.5 dimensions. The adapter supports both QSFP28 optical modules and copper direct-attach cables. The card uses the Broadcom BCM57414 50GbE MAC controller with an integrated single-channel 50GbE SFI transceiver.
